Belcon 275 pumpe

Art Nr.: Belcon 275

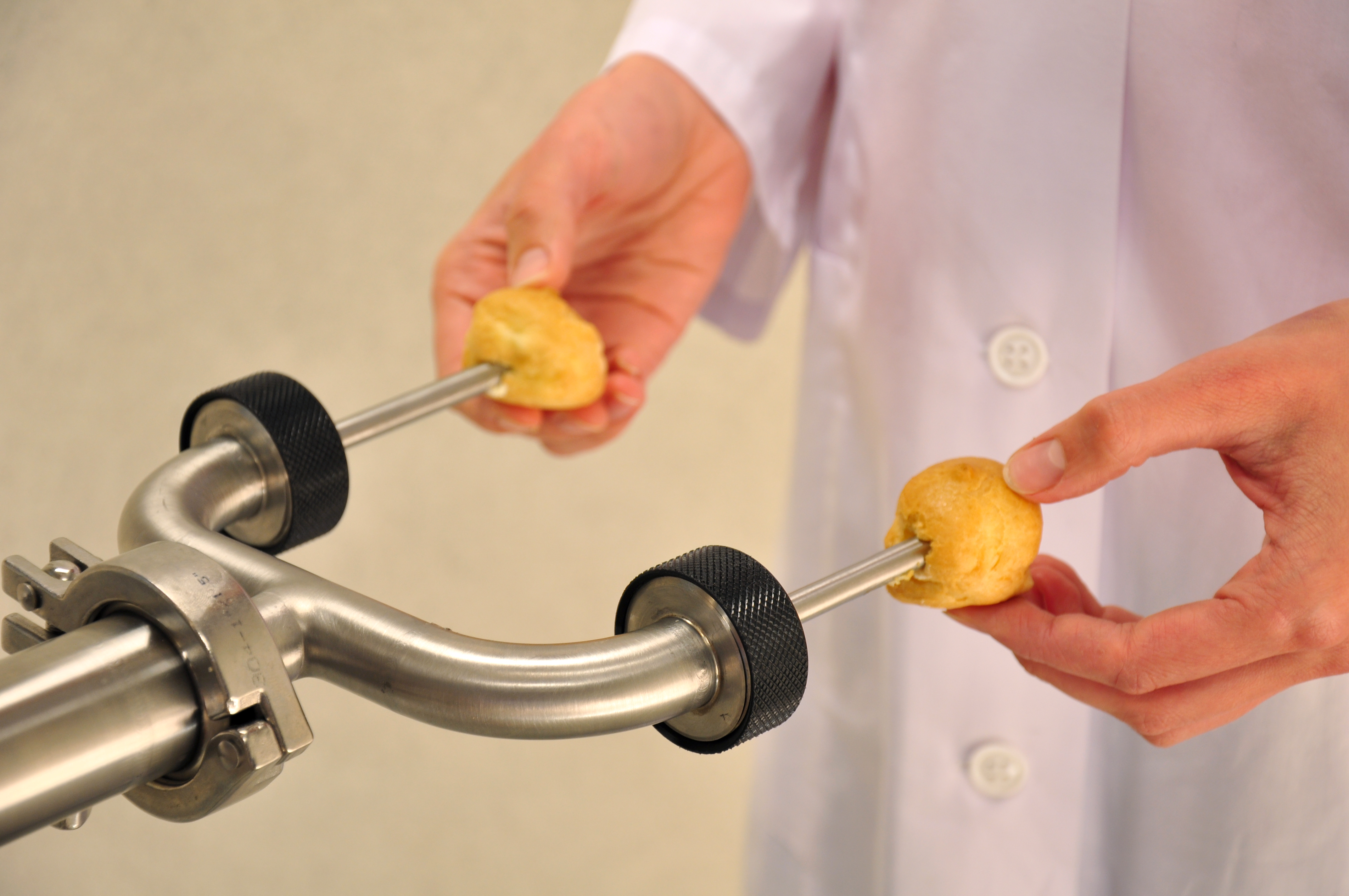

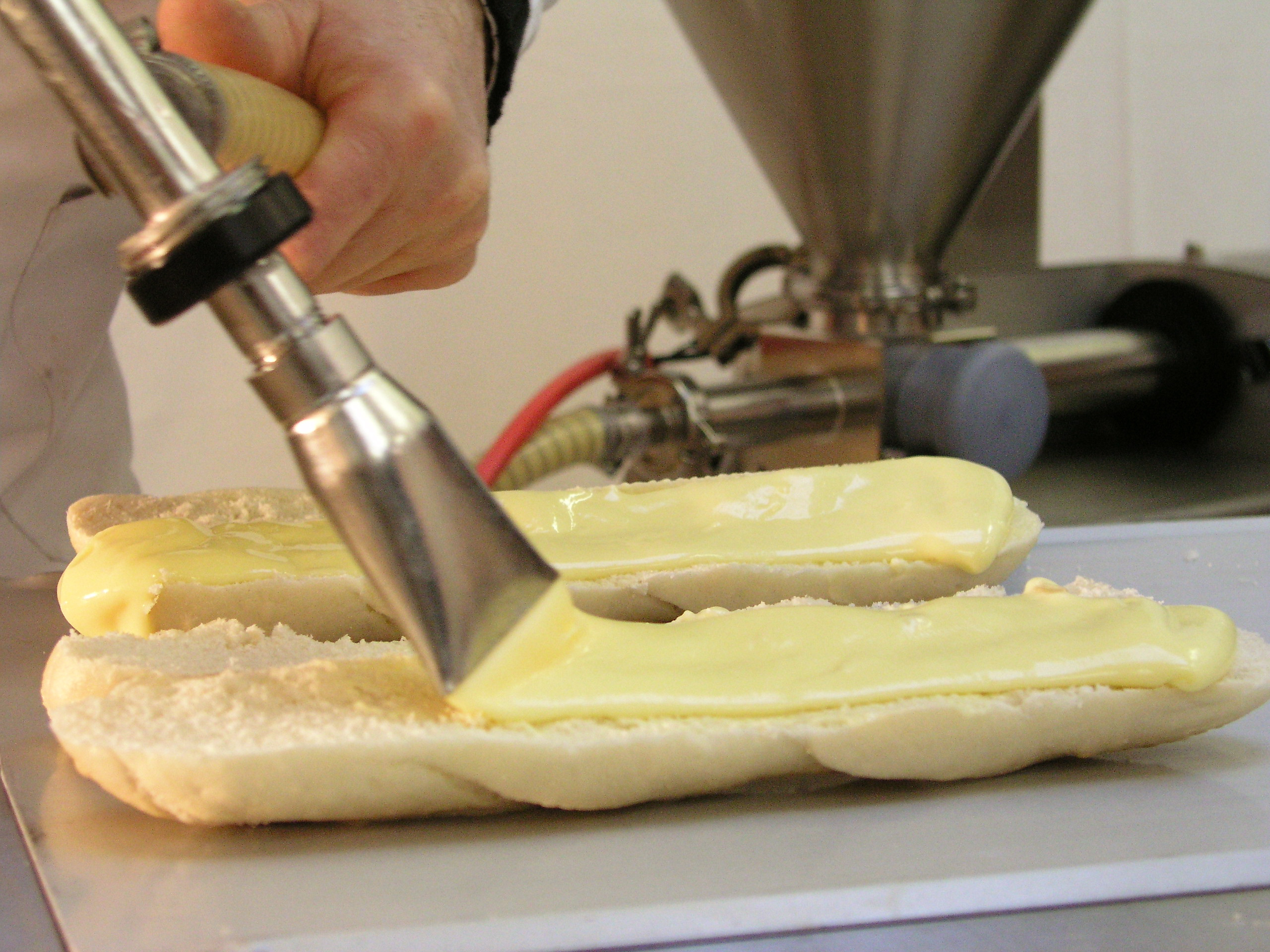

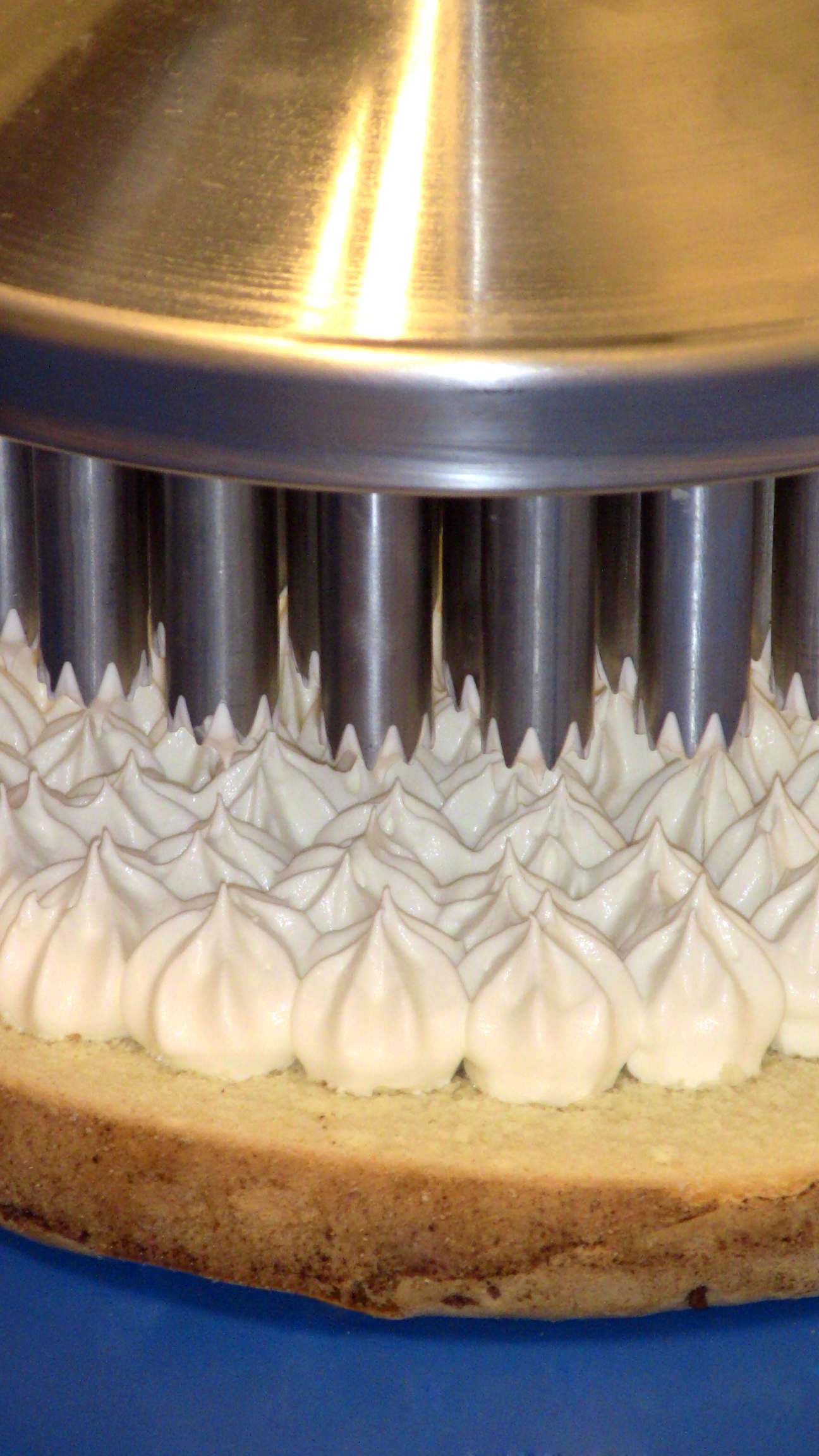

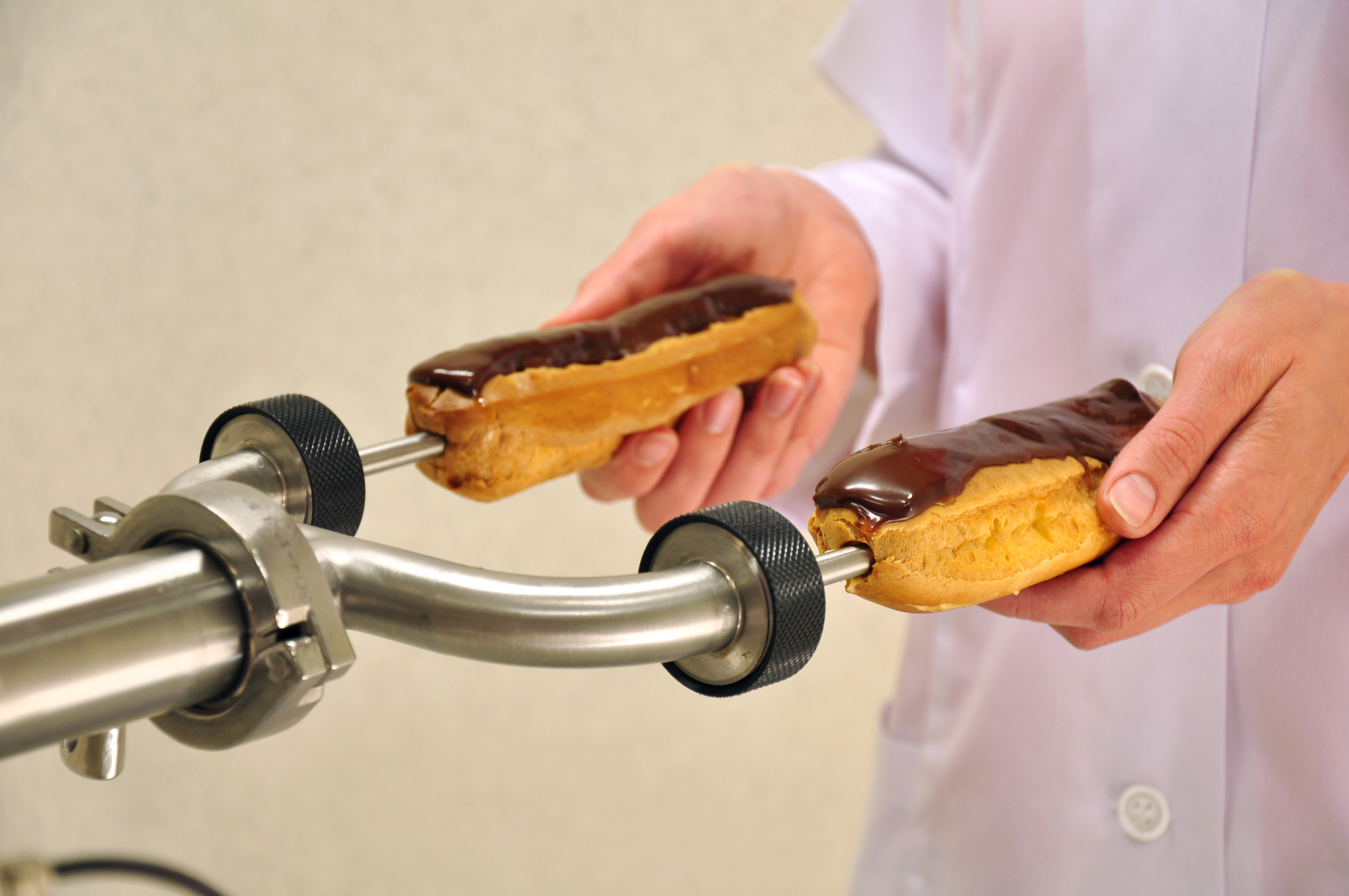

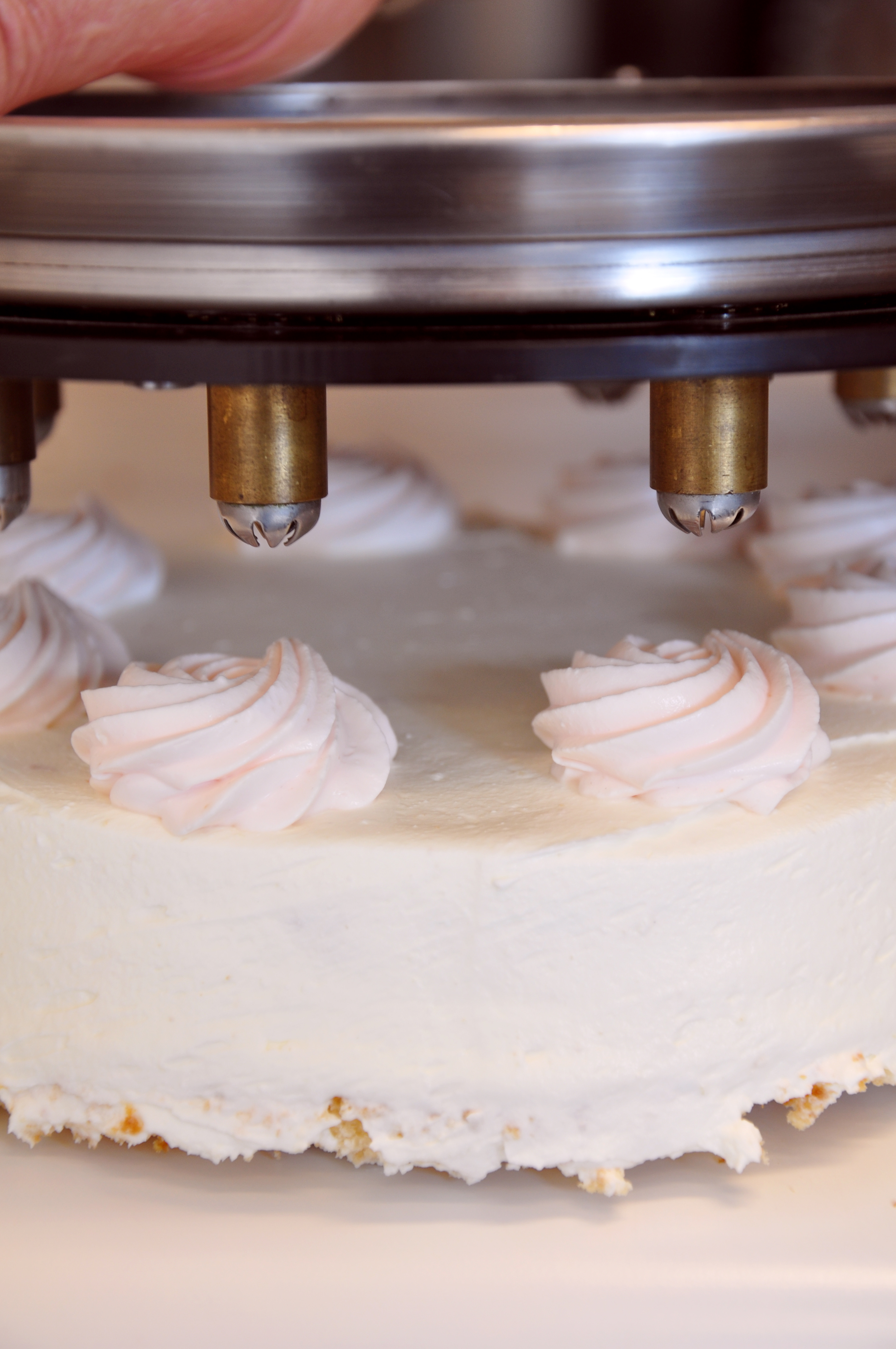

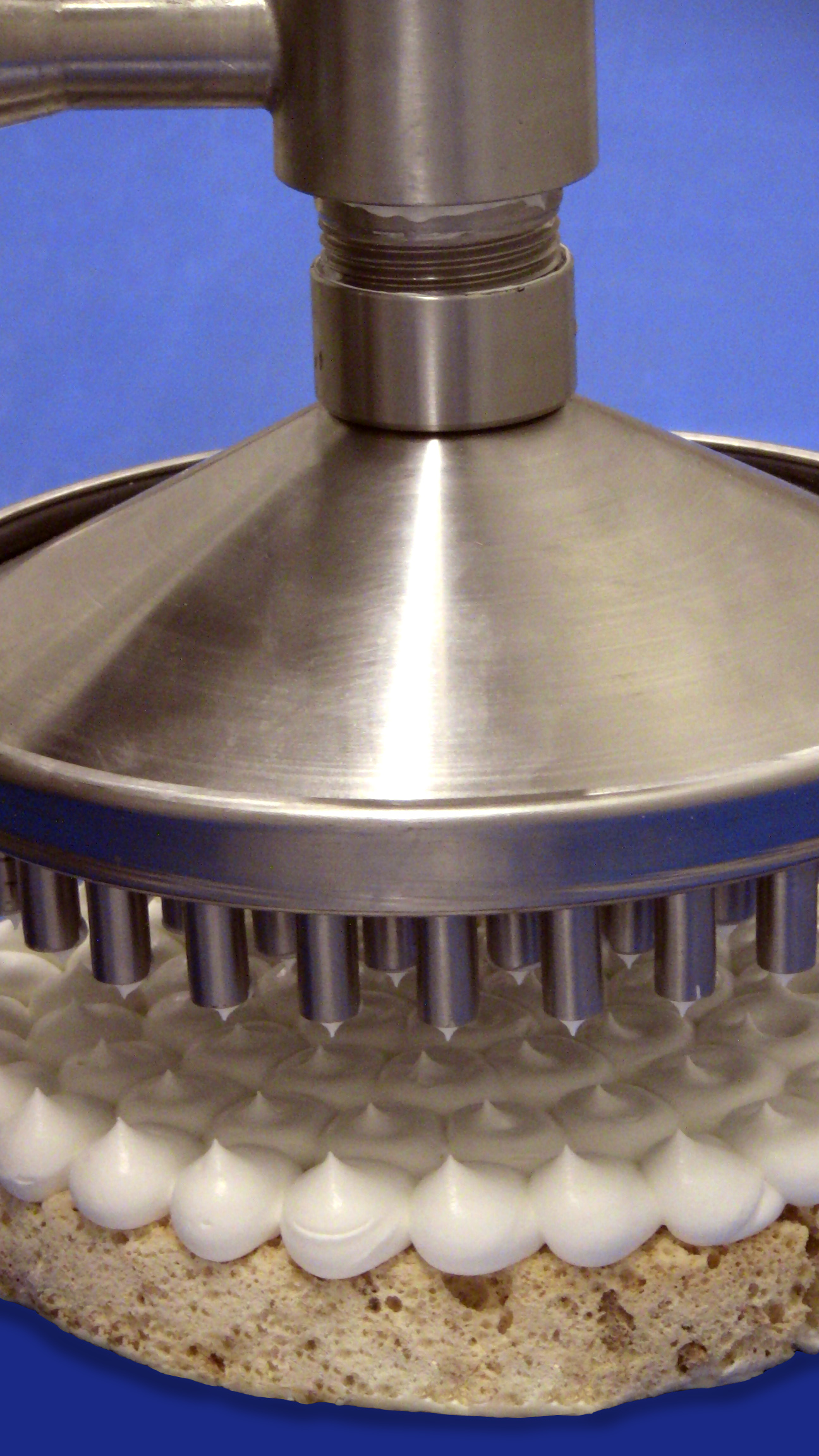

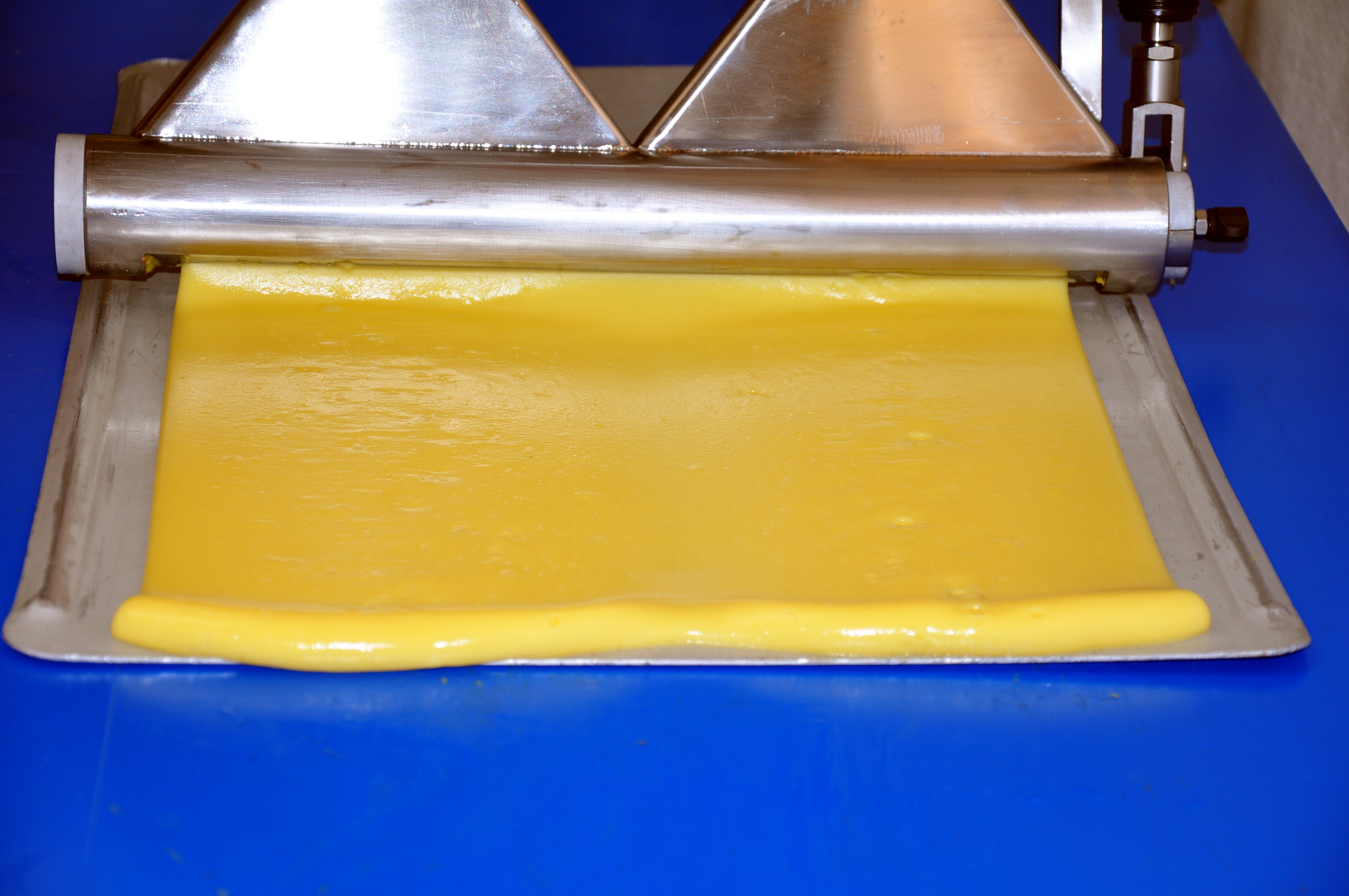

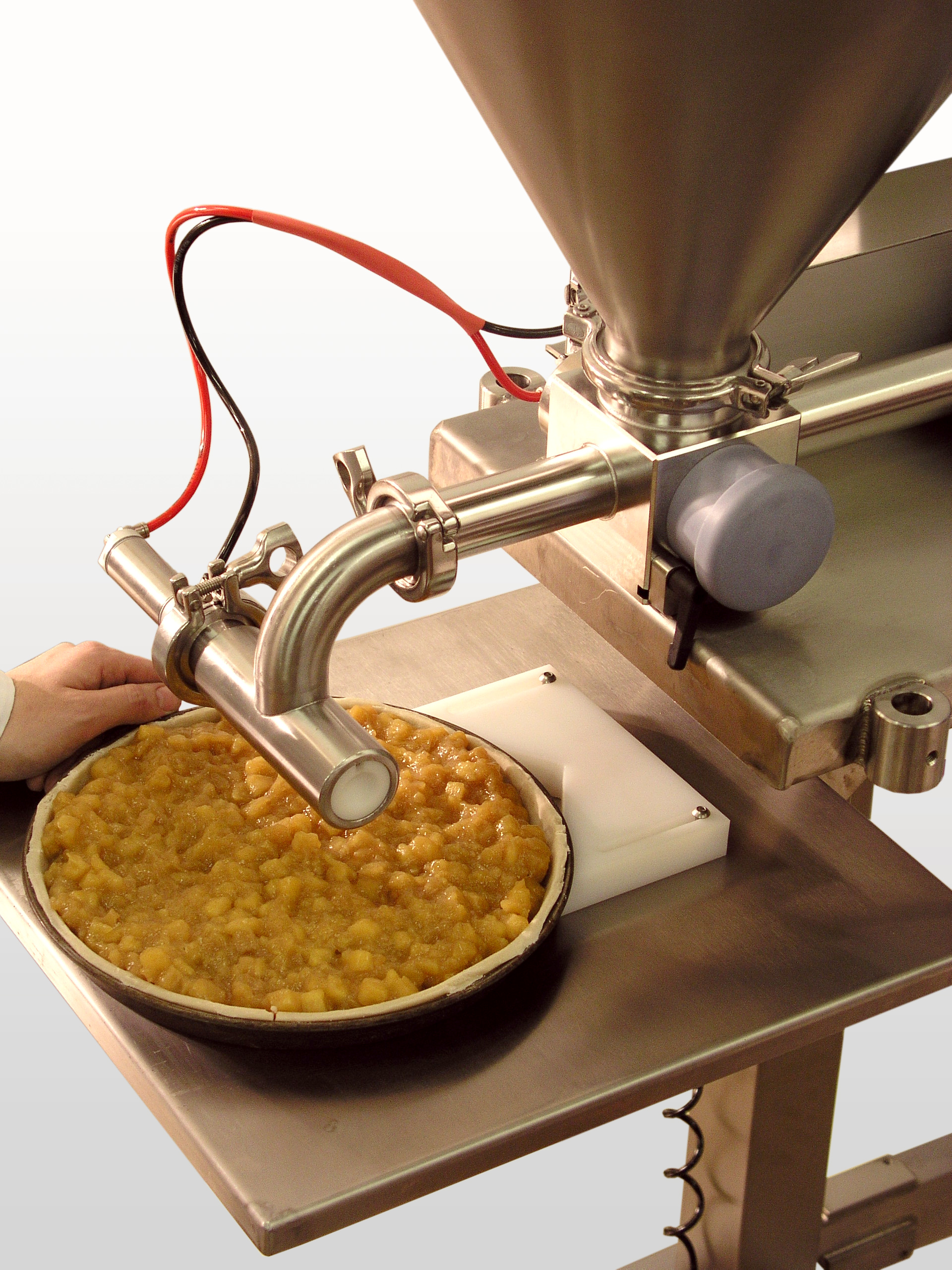

Beldos offers a range of versatile volumetric stainless steel depositors with optional attachments for depositing, injection, layering and decoration. Beldos depositors will replace your pastry bag, spoon or a measuring cup and will become the most reliable, easy-to-use and intelligent equipment at your production!

1. The Belcon depositor is available in three series:

• 275 – 5-275 ml per deposit;
• 670 – 5-670 ml per deposit;
• 1340 - 5-1340 ml per deposit;

2. Design features:

• designed for production lines;

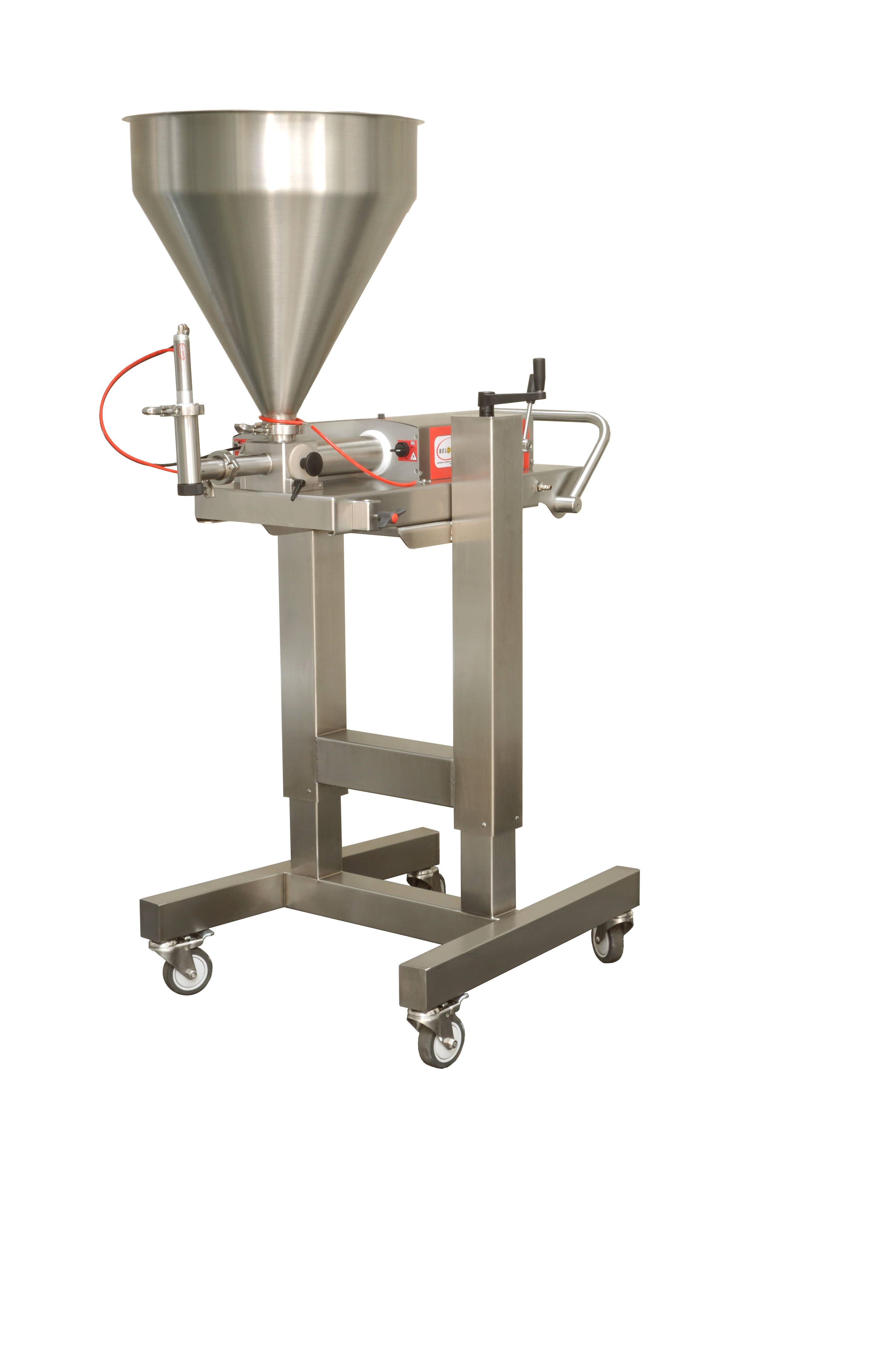

• mounted on a mobile heavy duty frame manually adjustable in height;
• height adjustment feet for horizontal leveling at the conveyor;
• optional locating bracket for blocking the depositor always on the right position at the conveyor belt;
• 60 l hopper;
• the depositing volume is indicated on a scale from 10% till 100% depending on the product cylinder volume;
• the speed of depositing can be easily adjustable;

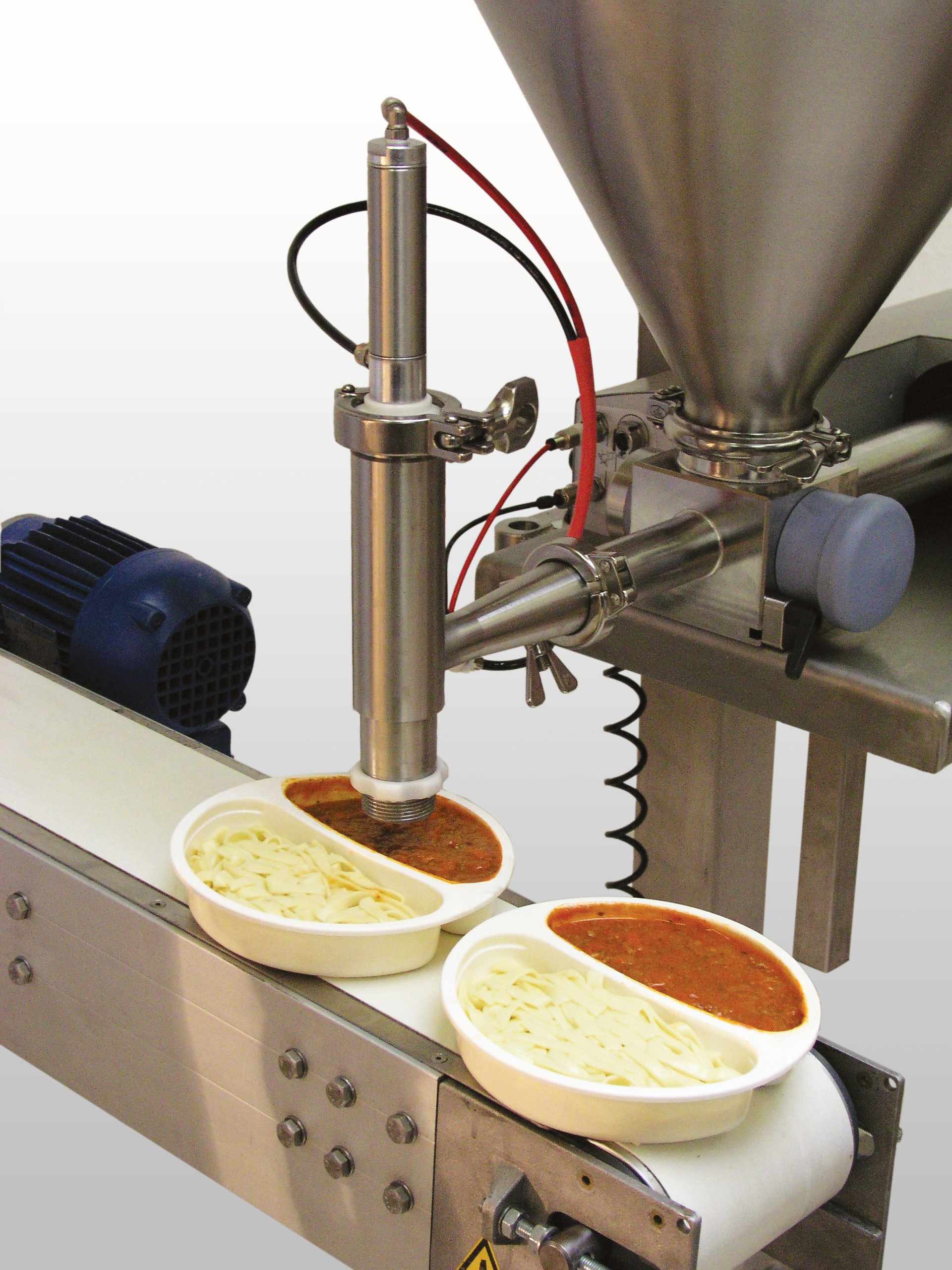

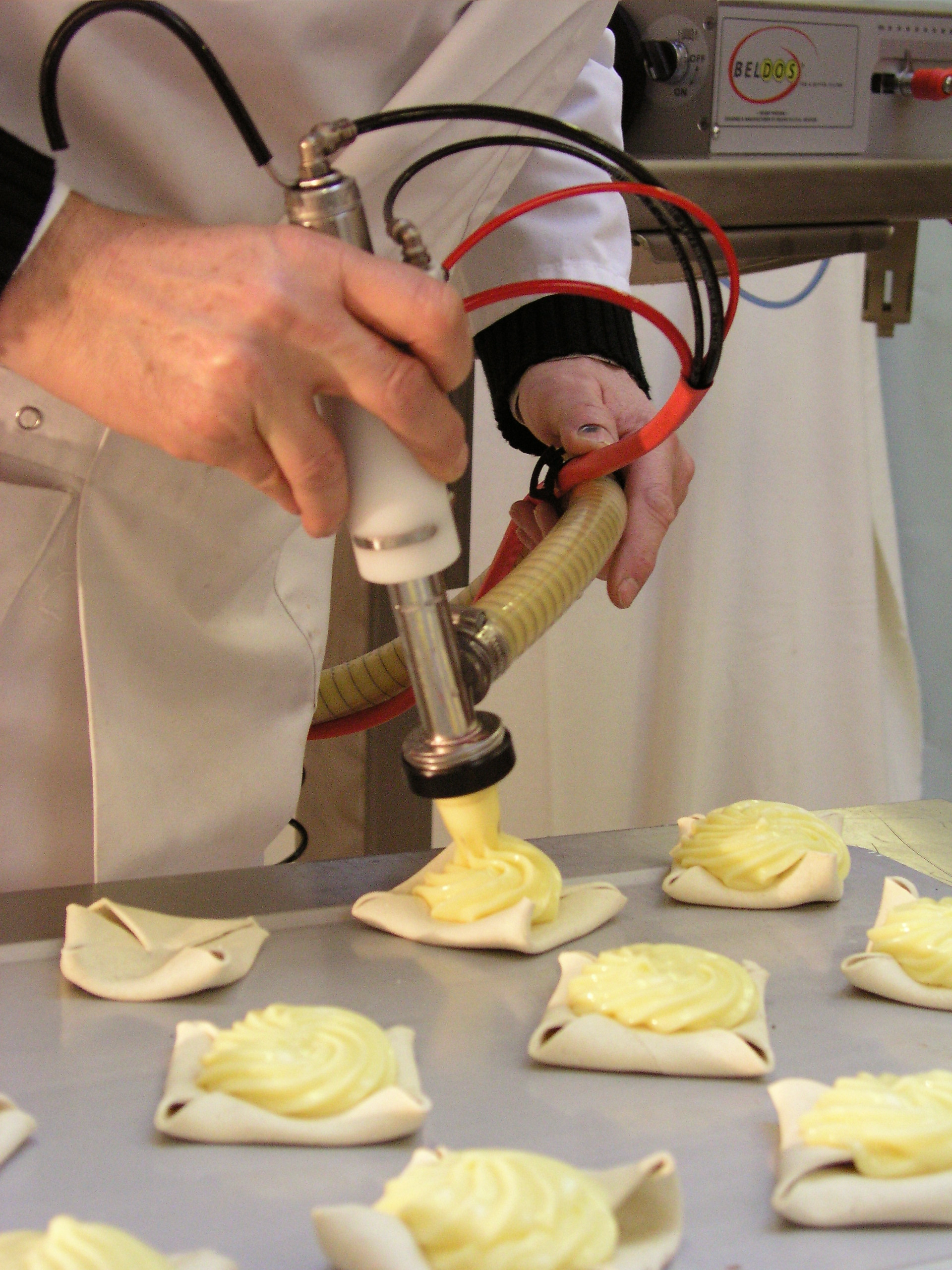

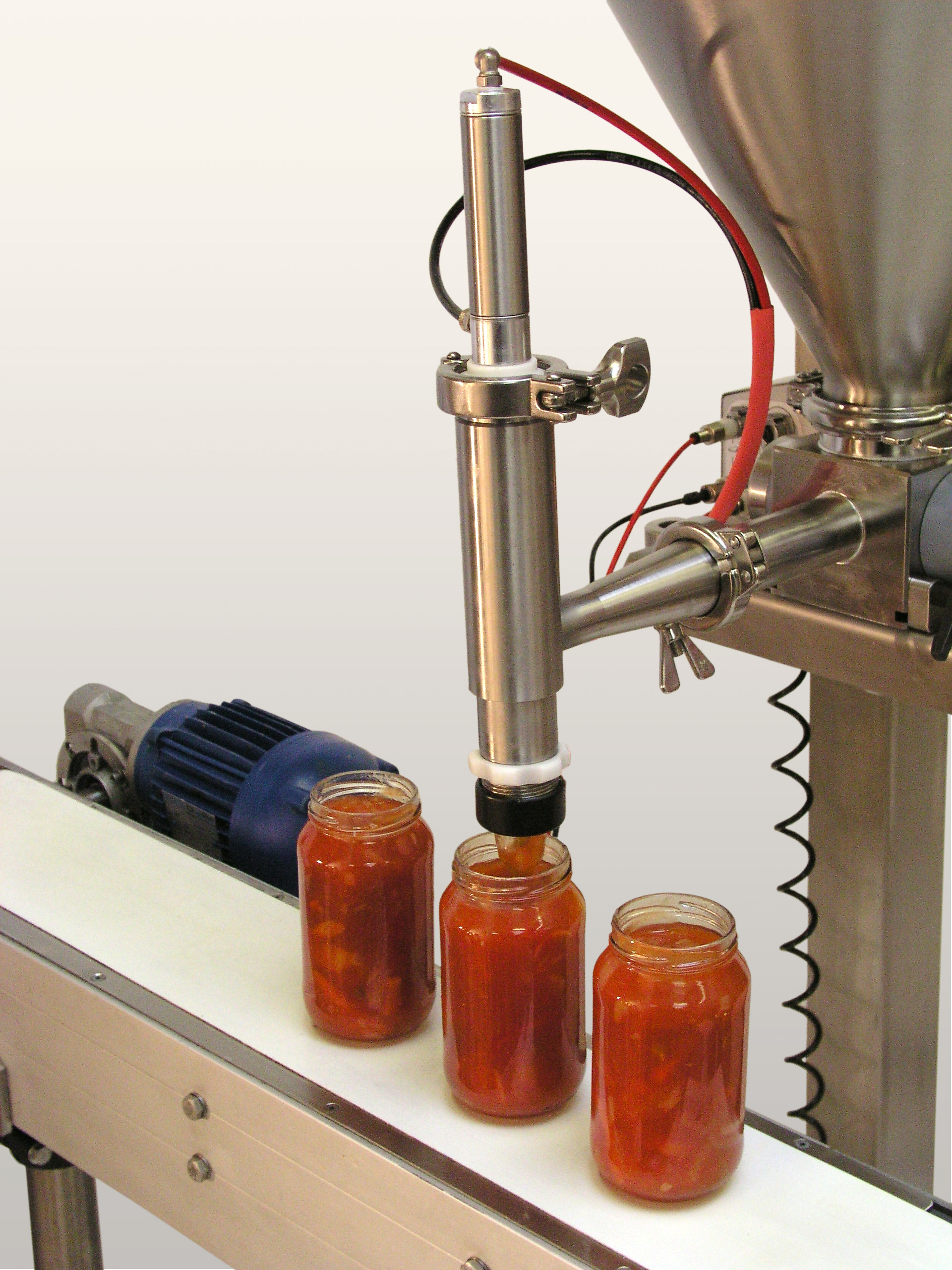

• foot pedal operation or handgun operation or automatic sensor operation on the conveyor; press the foot pedal or the trigger of the handgun once for single portion control or hold for multiple deposits;

3. Technical specifications

• Depositing speed: Up to 120 deposits/min
• Power: Air: 29 l/min at 30 deposits/min 7 Bar / 102 PSI
• Depositing volume: 5-275 cm3
• Material: Stainless steel
